Mobile Computer

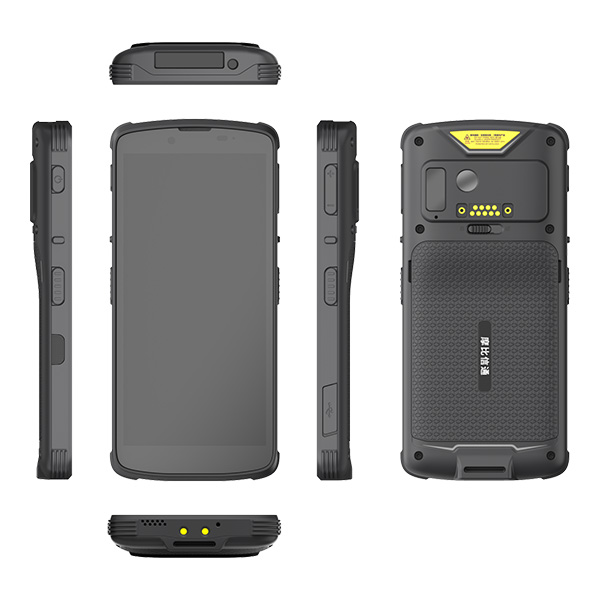

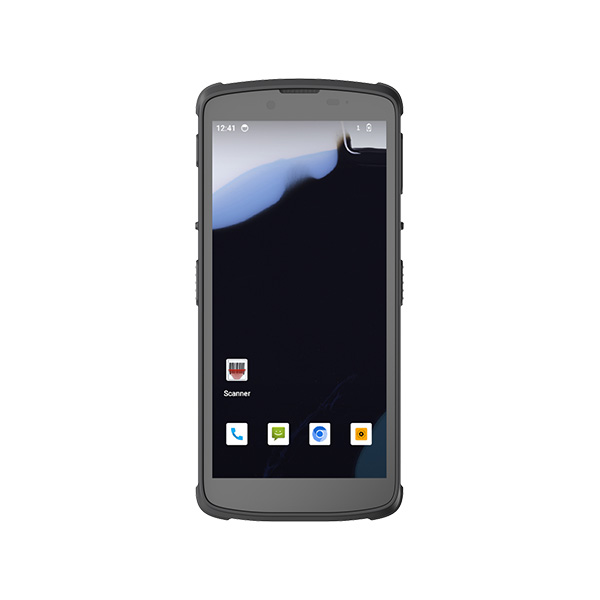

Mobydata V53 Full Touch PDA

Lightweight general purpose professional PDA device

Authorized decoding libraries by Europe

– Qualcomm’s strongest 4G IOT CPU, 2.8GHz
– Wi-Fi 6-Ready
– LPDDR4X+UFS high performance memory chip
– A new generation of 1.3 million BSI light-sensitive scanning engine
– Industrial grade infrared thermal imaging, temperature measurement, night vision
– Beidou sub-meter/cm high precision positioning
– Support Qualcomm /MTK dual platform
– Mobydata software service is supported

TECHNICAL SPECIFICATION

Physical Specifications
Weight	280g(With battery)
Dimension	1707815mm
Keypad	Left/right scan, Volume +/-, Power, Self define(K1)

Main Parameters
LCD	IPS, 6″, HD
TP	Incell, Glove, Wet
TP GLASS	Panda, 1.1mm
Extend Slot	SIM:dual-SIM dual standby;SD:TF, 256GB max
Rear Camera	AF, 13M, Flash
Front Camera	Option, 5M, FF
thermal camera	Qualcomm Option(industrial infrared thermal imaging + night vision + temperature measurement module, support dual light fusion algorithm)

Environment
IP	IP65
Drop	1.5m stell, 30 drops；1.8m with rubber boot, stell, 60 drops
Tumble	1000 hits @0.5m，2000 hits @0.5m with rubber；500 hits@1m w/o rubber，1000 hits@1m w rubber
Storage Temp	-30℃ to 70℃
Operation Temp	-25°C ~ +55°C
Operation Humidity	5%-95% non-condensing
Charging Temp	0°C-35°C
ESD	8K/15K

Wireless
Bluetooth	BLE V5.2
WLAN	MTK：802.11.a/b/g/n/ac，5G FEM；Qualcomm：Wi-Fi 6-ready，802.11.a/b/g/n/ac/ax，5G FEM
GPS	GPS/Glonass/Galileo/Beidou,Assisted GPS
NFC	NFC IC, On TOP
WWAN	GSM: B5, B3, B8, B2；UMTS: B1/B2/B5/B8； FDD_LTE：B1/2/3/5/7/8/20/28； TDD_LTE：B34/B38/39/40/41 CDMA BC0 (Some frequency bands are configured differently in different countries)
VOLTE	YES
CA	LTE CAT6, CA B1/3/7/40/41，Downlink 300Mbps
